Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

Name: Electrocoagulation System 5m3h Capacity for Wastewater Treatment
Brand: ECOPRO
Price: 36 USD

Wholesale Electrocoagulation System 5m3/h Capacity for Wastewater Treatment from china suppliers

Place of Origin : Shanghai, China

Brand Name : ECOPRO

MOQ : 1

Price : $36,897

Productivity : 5m3/h

Weight : 1900 kg

Processing Type : filtration

Power : 1 kW

Voltage : 220 V, 380 V, 110 V

Capacity : 5m3/h

Electrode Weight : 1900 kg

Empty Weight : 1900 kg

Operation Weight : 7800 kg

Core Components : Motor

Power Supply Range : 220V-480VAC

Anode Material : Aluminum, Iron

Oxidation Function : Nascent oxygen [O]

Reduction Function : Nascent hydrogen [H]

Automatic Control : Yes

Contact Now

Product Description

Electrocoagulation Machine Electrocoagulation Tanks Electrocoagulation Water Treatment

Electrocoagulation system is a waste water treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material usually uses aluminum, iron and other readily available and inexpensive metals.

Electrocoagulation System Fabricate Process

Electrocoagulation System 5m3/h Capacity for Wastewater Treatment

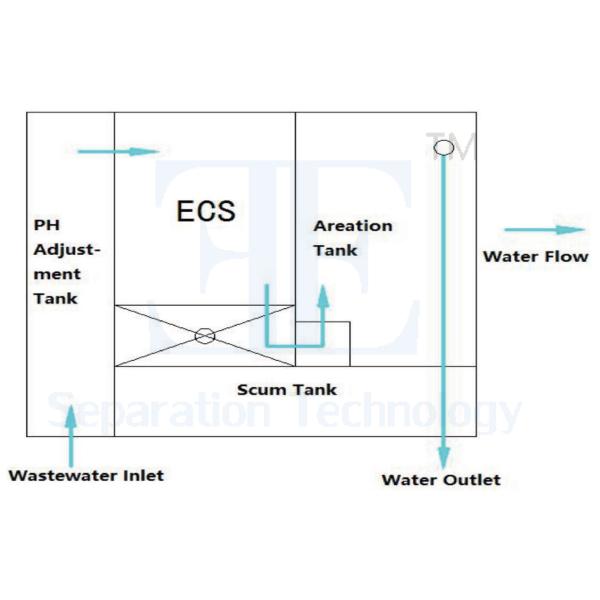

Electrocoagulation System Work Process

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe²⁺+2e

Anodizing reaction: 2OH^-→2[O]+2e→0₂+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.

Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

1. Wide adaptability of power supply: 220V-480VAC range is available.
2. Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.);
3. Automatic control: can automatically detect the ion state in the water to adjust the current, voltage
4. Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.

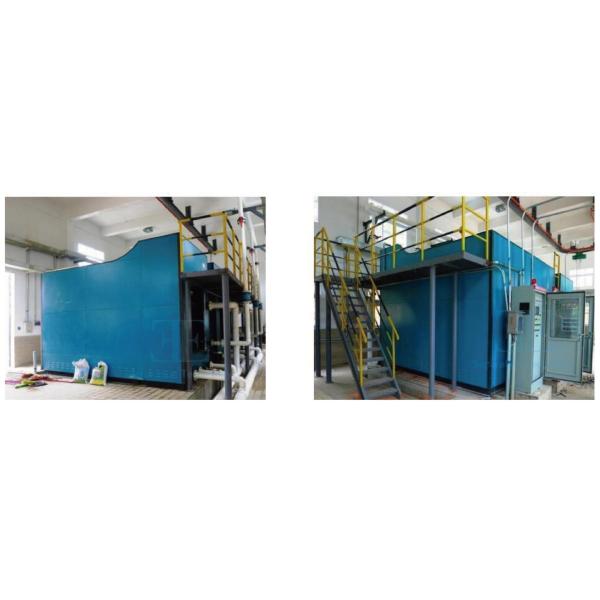

Electrical Flocculation System Work Site for Reference
