40m3/h Electrocoagulation System for Wastewater Treatment 380V

Name: 40m3h Electrocoagulation System for Wastewater Treatment 380V
Brand: ECOPRO
Price: 38 USD

Wholesale 40m3/h Electrocoagulation System for Wastewater Treatment 380V from china suppliers

Place of Origin : Shanghai, China

Brand Name : ECOPRO

MOQ : 1

Price : $38,627

Productivity : 40m3/h

Weight : 2298 kg

Power : 3 kW, 30 kW, 20 kW

Voltage : 220 V, 380 V, 110 V

Electrode Weight : 650 kg

Empty Weight : 400 kg

Operation Weight : 1500 kg

Treating Capacity : 1m3/h

Power Consumption : 3kw/h

Dimension : 1000*650*1500 mm

Voltage Range : 220V-480VAC

Processing Type : filtration

Contact Now

Product Description

Electrocoagulation Equipement Electrocoagulator Electrocoagulation Water Treatment

Electrocoagulation system is a waste water treatment process that utilizes a metal hydroxide produced by a soluble metal anode during flocculation to remove contaminants from water. The anode material usually uses aluminum, iron and other readily available and inexpensive metals.

40m3/h Electrocoagulation System for Wastewater Treatment 380V

Treating Capacity	1m3/h
Power Consumption	3kw/h
Dimension	10006501500mm
Electrode Weight	650kg
Empty Weight	400kg
Operation Weight	1500kg

Electrocoagulation System Principle

Electrochemical reaction: Fe→Fe²⁺+2e

Anodizing reaction: 2OH^-→2[O]+2e→0₂+2e, The nascent oxygen [O] has the same strong oxidation function as UV, H2O2 and O3.

Cathode reduction: 2H++2e→2[H]→H2, nascent hydrogen can break bonds, COD, chromophore functional groups and multi-chain health.

The above oxidation and reduction functions occur continuously on the plates.

Electrocoagulation System Features

1. Wide adaptability of power supply: 220V-480VAC range is available.
2. Safe and convenient: embedded isolated voltage circuit to ensure electrical safety; a variety of abnormal indications and protection (phase loss, overload, overcurrent, overvoltage, zero voltage, etc.);
3. Automatic control: can automatically detect the ion state in the water to adjust the current, voltage
4. Energy saving: Fe(OH)2 and Fe(OH)3 are excellent coagulants. No need polymer is a major feature of this equipment.

Company Introduction

Shanghai Ecopro Environmental Engineering Co.Ltd.the flagship company was established in 2017,focus on one-stop Water & Wastewater treatment equipments and Separation Service Environment. As a professional environmental engineering,since its inception, we always adhere to the spirit of craftsmanship, to provide the industry with equipment and services and systematic solutions, products include static screen, rotary drum screen ,polymer dosing system, DAF system, electrochemistry system,screw press , plate filter press ,sludge dryer, Mutag Biochip, sodium hypochlorite generator and different kinds of pumps and so on .

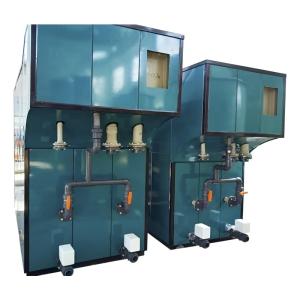

40m3/h Electrocoagulation System for Wastewater Treatment 380V Images
